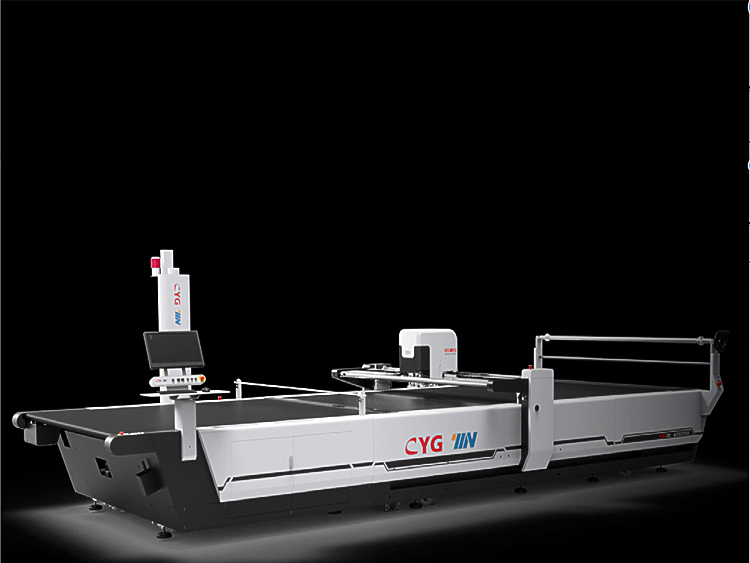

/ 產品中心 / 全自動電腦裁床HY-HCN系列 / 數控裁剪機HY-HCN100
- 產品介紹
- 參數詳情
- 相關視頻
|
型號/Model |
HY-HCN100 1.7M |
HY-HCN100 2.0M |
HY-HCN100 2.3M |
|
設備總長/Length |
6861mm |
||
|
設備總寬/Width |
2625mm |
2925mm |
3225mm |
|
設備總高/Height |
2184mm |
||
|
設備凈重/ Net Weight |
3900kg |
4200kg |
4600kg |
|
裁剪高度/ Cutting Height |
5/7/11cm(可選/Optional) |
||
|
刀盤/Cutter Head |
1.6/2.0/2.5/3.0mm(可選/Optional) |
||
|
磨刀方式/ Grinding Mode |
雙輪對旋式/Double Round Disrotatory |
||
|
最高機械速度/ Maximum Speed |
60m/min |
||
|
電源/Power Supply |
380V 50Hz |
||
|
氣流量/Air Flow |
160L/min |
||
|
氣壓/Pressure |
≥0.5MPa |
||
|
最大功率/ Maximum Power |
30kW |
||
|
減速機背隙/ Reducer Backlash |
0.05° |
||
|
再覆蓋/Recover |
手動式/氣缸式(選配) Manual/Air Cylinder(Optional) |
||
|
慣量推定/ Inertia Calcuation |
自動調節/Self-adjusting |
||
|
編碼器位數/ Encoder Bits |
20位/23位/24位 20-bit/23-bit/24-bit |
||
|
安全防撞裝置/Anticollosion Device |
光電感應/Optronic Sensor |
||
|
移動控制方式/Moving Control Mode |
無線手柄/wireless controller |
||
|
導軌安裝/Guide Rail Installation |
整體加工成型安裝/processing and forming installation |
||
| 型號/Model |
|
| 設備總長/Length | 6861mm |
| 設備總寬/Width |
|
| 設備總高/Height | 2184mm |
| 設備凈重/Net Weight |
|
| 裁剪高度/Cutting Height | 5/7/11cm(可選/Optional) |
| 刀盤/Cutter Head | 1.6/2.0/2.5/3.0mm(可選/Optional) |
| 磨刀方式/Grinding Mode | 雙輪對旋式/Double Round Disrotatory |
| 最高機械速度/MaximumSpeed | 60m/min |
| 電源/Power Supply | 380V 50Hz |
| 氣流量/Air Flow | 160L/min |
| 氣壓/Pressure | ≥0.5MPa |
| 最大功率/Maximum Power | 30kW |
| 減速機背隙/Reducer Backlash | 0.05° |
| 再覆蓋/Recover | 手動式/氣缸式(選配) Manual/Air Cylinder(Optional) |
| 慣量推定/Inertia Calcuation | 自動調節/Self-adjusting |
| 編碼器位數/Encoder Bits | 20位/23位/24位 |
| 安全防撞裝置/Anticollosion Device | 光電感應/Optronic Sensor |
| 移動控制方式/Moving Control Mode | 無線手柄/wireless controller |
| 導軌安裝/Guide Rail Installation | 整體加工成型安裝/processing and forming installation |
